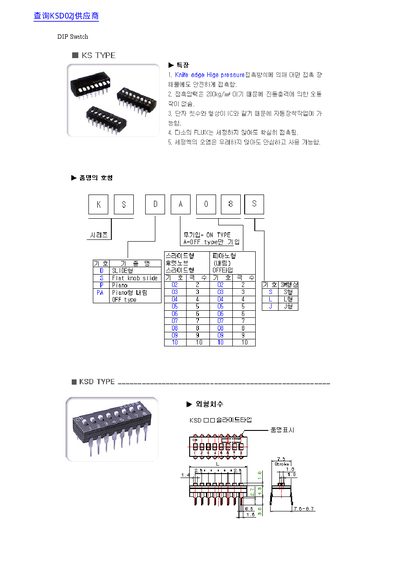

The KS Type DIP switch series includes several switch configurations such as KSP (piano key ON type), KSPA (piano key OFF type), and KSS (fit knob slide type). Each variant is identified by a model coding that indicates ON or OFF operation.
Physical details such as stroke length, contact material, and electrical ratings are provided, along with dimensional data for the cover, case, and mounting options. The document also lists typical electrical characteristics and recommended operating conditions.
| Stroke length | 1.3 mm |
|---|---|
| Maximum cycle rating | 1 000 cycles/min |
| Contact material | Beryllium |
The switch has a stroke length of approximately 1.3 mm.
