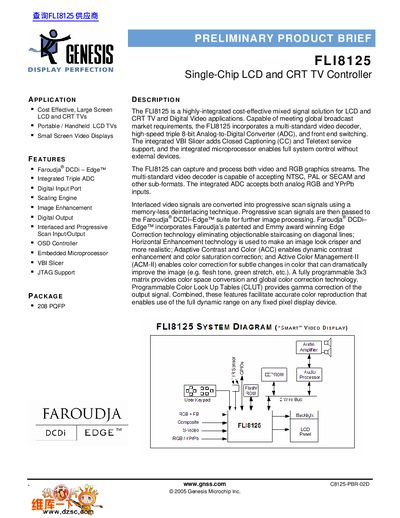

The FLI8125 is a highly-integrated cost-effective mixed signal solution for LCD and CRT TV and Digital Video applications.
The FLI8125 is a highly integrated, cost‑effective mixed‑signal solution for LCD and CRT TV and digital video applications. It combines a multi‑standard video decoder, a high‑speed triple 8‑bit ADC, front‑end switching and an embedded microprocessor that provides full system control without external devices.
Key features include Faroudja® DCDi‑Edge image enhancement (Edge Correction, Horizontal Enhancement, Adaptive Contrast and Color, Active Color Management‑II), a programmable 3×3 matrix, CLUT gamma correction, independent H & V scaling, dual‑LVDS output up to SXGA, and extensive I/O such as 2‑wire slave controller, UART, JTAG and GPIOs.
| Package | 208 PQFP |
|---|---|
| Integrated ADC | Triple 8‑bit ADC |
| Input Port | 24‑bit re‑configurable |
| TTL Output | 18/24‑bit 8 MHz |
| LVDS Output | Dual LVDS up to SXGA |
| Core | Turbo 186 |
| Memory | Internal RAM/ROM OSD controller |
| Control Interface | 2‑wire slave controller, UART support |
| Debug Interface | JTAG Support |
It accepts NTSC, PAL, SECAM and other sub‑formats.
