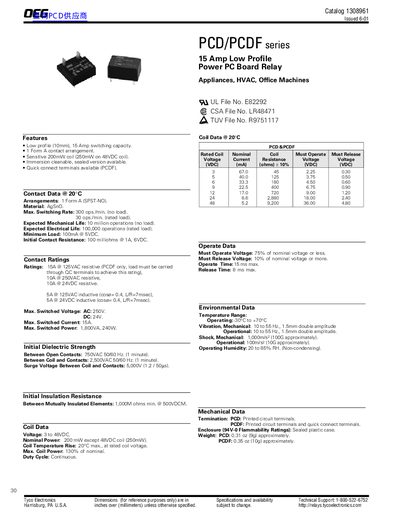

This document describes the features and characteristics of Tyco Electronics' PCD/PCDF series 15 Amp low profile power PCB relays, including low profile, 15 Amp switching capacity, 1 Form A contact arrangement, sensitive 200mW coil, immersion cleanable sealed version, and quick connect terminals.
The OEG PCD/PCDF series offers a low‑profile (10 mm) 15 A power PC board relay suitable for appliances, HVAC and office machines. It features a 1 Form A (SPST‑NO) contact arrangement, AgSnO contact material, and options for sealed or vented enclosures. Quick‑connect terminals (PCDF) and standard printed‑circuit terminals (PCD) are available.
The catalog provides extensive electrical and mechanical data, including coil voltage range, switching ratings, environmental limits, and mechanical dimensions. Ordering information, part‑number coding, and technical support contacts are also included.
| Switching capacity | 15 A @ 125 VAC resistive (PCDF only) |
|---|---|
| Profile height | 10 mm |
| Coil voltage range | 3 VDC to 48 VDC |
| Maximum switched voltage | AC 250 V / DC 24 V |
| Maximum switched current | 15 A |
| Expected mechanical life | 10 million operations (no load) |
| Expected electrical life | 100,000 operations (rated load) |
| Operating temperature range | -30 °C to +70 °C |
| Weight (PCD version) | 0.31 oz (9 g) |
The coil can be operated from 3 VDC up to 48 VDC.
The relay can switch up to 250 V AC or 24 V DC with a maximum current of 15 A.
It is rated for operation from –30 °C to +70 °C.
