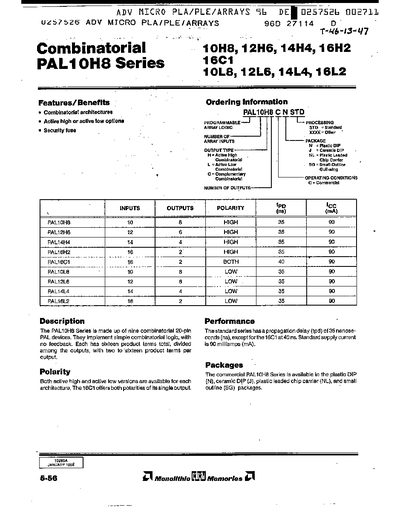

The PAL10H8 series from Combinatorial consists of nine 20‑pin programmable logic devices that implement simple combinatorial logic without feedback. Each device provides sixteen product terms distributed among the outputs, with options for active‑high, active‑low, or both polarities.
The series is offered in multiple package types (plastic DIP, ceramic DIP, plastic leaded chip carrier, and small‑outline) and operates over a wide temperature range. Detailed electrical characteristics, absolute maximum ratings, and pinout diagrams are provided for each device variant.
| Supply current | 90 mA |
|---|---|
| Supply voltage (VCC) | 4.75 V to 5.25 V |
| Polarity options | Active‑high, Active‑low, both (16C1) |
The devices draw a standard supply current of 90 mA.
Yes, each architecture is available in both active‑high and active‑low versions; the 16C1 device provides both polarities on its single output.
