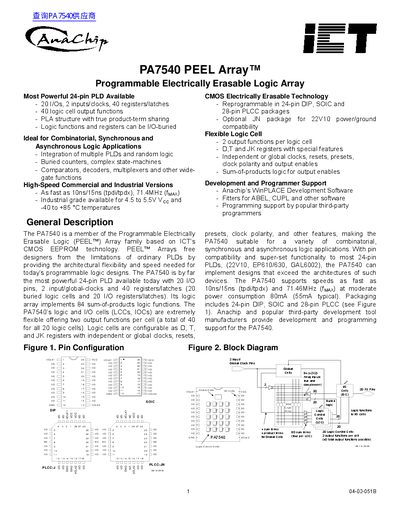

PA7540 is a Programmable Electrically Erasable Logic (PEEL™) Array product, which offers high integration, various logic functions and registers, and high-speed performance. It is suitable for combinatorial, synchronous, and asynchronous logic applications.
The PA7540 is a member of the PEEL™ Array family based on ICT’s CMOS EEPROM technology. It provides 20 I/O pins, 2 global clocks, 40 registers/latches, and 84 product terms, delivering high‑speed operation (up to 71.4 MHz) for combinatorial, synchronous and asynchronous logic applications.
Development is supported by Anachip’s WinPLACE software and popular third‑party programmers. The device is available in DIP‑24, SOIC‑24 and PLCC‑28 packages, with both commercial (0 °C to 70 °C) and industrial (‑40 °C to +85 °C) temperature grades.
| Supply Voltage (Commercial) | 4.75 V – 5.25 V |
|---|---|
| Number of I/O Pins | 20 |
| Number of Registers/Latches | 40 |
| Product Terms | 84 |
| Internal Propagation Delay | 10 ns |
| External Propagation Delay | 15 ns |
The device has 20 I/O pins.
Anachip’s WinPLACE Development Software supports PA7540 development.
