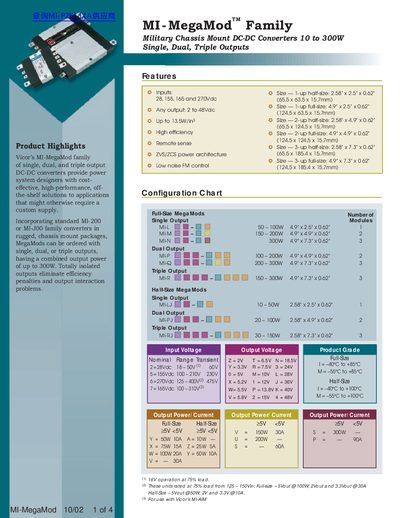

Vicor's MI-MegaMod family of single, dual, and triple output DC-DC converters provide power system designers with cost-effective, high-performance, off-the-shelf solutions to applications that might otherwise require a custom supply. Incorporating standard MI-200 or MI-J00 family converters in rugged, chassis mount packages, MegaMods can be ordered with single, dual, or triple outputs, having a combined output power of up to 300W. Totally isolated outputs eliminate efficiency penalties and output interaction problems.
The MI‑MegaMod family from Vicor offers rugged, chassis‑mount DC‑DC converters designed for military and industrial applications. Available in single, dual and triple output configurations, they cover power levels from 10 W up to 300 W and support a wide input voltage range.
Key specifications include input voltages from 28 V to 270 Vdc, output voltages from 2 V to 48 Vdc, efficiencies of 80‑90 %, and up to 3 kV isolation between input and output. The converters are offered in compact half‑size and full‑size modules with various mechanical dimensions and mounting options.
| Power range | 10 W to 300 W |
|---|---|
| Input voltage range | 28 V – 270 Vdc |
| Output voltage range | 2 V – 48 Vdc |
| Efficiency | 80‑90 % |
| Isolation (input to output) | 3 kV |
| Weight (1‑up full‑size) | 45 oz (127 g) |
They accept input voltages from 28 V up to 270 Vdc, depending on the specific model.
The converters achieve efficiencies between 80 % and 90 %.
The family is offered with single, dual, or triple output configurations.
