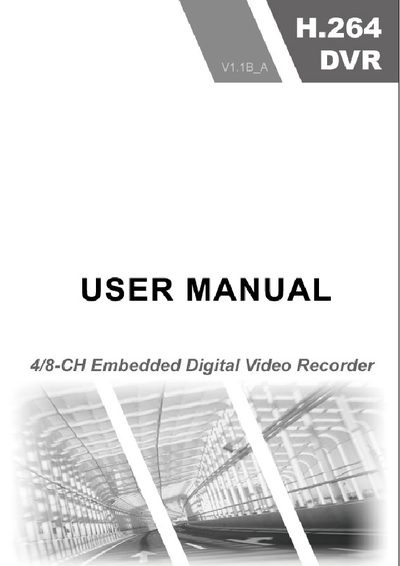

This manual introduces the basic operations and usage methods of 4/8-channel H.264 DVR.
The 4/8-channel H.264 DVR is a consumer‑oriented network video recorder that supports 4 or 8 analog video inputs, H.264 compression, and real‑time playback. It includes a remote controller, power adapter, and pre‑installed SATA hard disk, and offers features such as multiple recording modes, dual‑stream video, and PTZ control.
The manual provides step‑by‑step installation instructions, details on front and back panel connectors, network configuration, client software usage, and troubleshooting. Technical specifications, hard‑disk space calculations, and safety guidelines are also included.
| Operating system | Embedded LINUX OS |
|---|---|
| Video/Audio input | 4/8 channels BNC |
| Video/Audio output | 1 channel BNC |
| Display | 1/4/8-channel |
| Recording mode | Timer/manual/motion detection/alarm |
| Recording frame rate | PAL 25fps, NTSC 30fps |
| Power supply | DC12V/3A |
| Hard disk support | 1 SATA HDD, up to 2 TB |
| Network interface | 1 RJ‑45 10/100M Ethernet |
| PTZ protocol | PELCO‑D, PELCO‑P |
It requires a DC12V/3A adapter.
The DVR supports 4 or 8 BNC video input channels.
It offers timer, manual, motion detection, and alarm recording modes.
Up to 2 TB SATA hard disk can be installed.
