The WELDPRO TM system is a professional welding machine designed for the electronic and micro-electronic industries. It is specially designed for welding enameled and metal wires between 0.02mm - 0.45mm in diameter without any soldering. It can also weld thin metal strips and thin metal slides. It has widely found application in the micro-electronic industry.

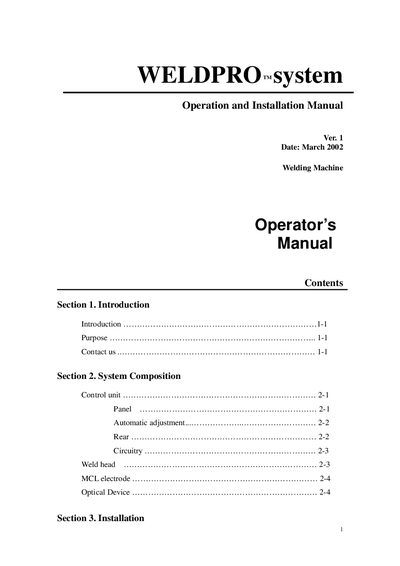

This manual describes the WELDPRO™ welding system, a professional welding machine for electronic and micro‑electronic industries. It covers system composition, installation procedures, adjustment of settings, technical specifications, and calibration guidelines.
The document is organized into sections on Introduction, System Composition (Control Unit, Weld Head, Optical Machine), Installation steps, Adjustment of Settings (pulse amplitude, duration, weld force), Technical Specifications, and Calibration procedures, plus contact information for the manufacturer.
| Pulse amplitude range | 0.01 V – 1.99 V |
|---|---|
| Weld force range | 30 g – 3000 g |
The pulse amplitude can be set from 0.01 V up to 1.99 V.
The weld force can be adjusted between 30 g and 3000 g in 10 g steps.
A special dial adjusts the pre‑pulse amplitude; setting the dial to zero disables the pre‑pulse.
Fix the baseboard and rectangular stand to a sturdy work surface using the provided screws.
