1102A-1110UFA is a single phase bridge voltage multiplier produced by Voltage Multipliers Inc. The rated working voltage is 200V-1000V, the rated working current is 1.4A-1.5A, and the rated recovery time is 70ns-3000ns.

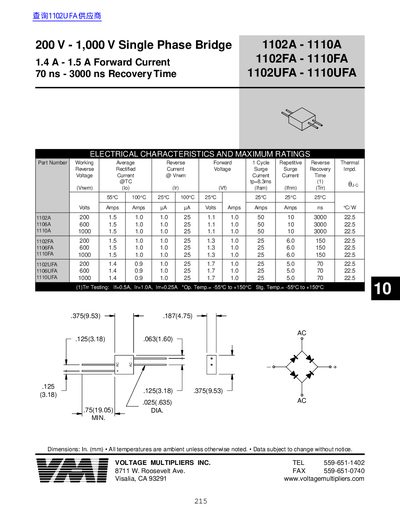

This datasheet provides the electrical characteristics, maximum ratings, and performance curves for VMI's 1102A/1110A series of single‑phase bridge rectifiers. It includes forward current limits, reverse voltage ratings, recovery times, and temperature‑dependent behavior.
Key tables list part numbers with their corresponding voltage, current, and thermal specifications, while graphs illustrate forward current versus temperature and reverse current versus voltage for each device.
| Maximum Reverse Voltage (Vrwm) for 1102A | 200 V |
|---|---|
| Maximum Forward Current for 1102A | 1.5 A |
| Recovery Time for 1102A | 3000 ns |
| Maximum Reverse Voltage (Vrwm) for 1110FA | 1000 V |
| Maximum Forward Current for 1102UFA | 1.4 A |
The 1102FA is rated for a maximum reverse voltage of 200 V.
The typical forward voltage is about 1.0 V.
The 1102A can handle up to 1.5 A forward current.
