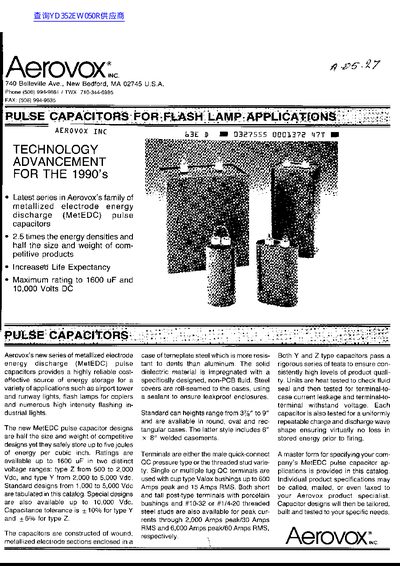

Aerovox’s MetEDC pulse capacitors provide a reliable, high‑energy‑density source for flash‑lamp and other high‑intensity lighting applications. The series offers up to 1,600 µF and 10,000 VDC ratings, with type Z (500‑2,000 VDC) and type Y (2,000‑5,000 VDC) options, compact case sizes, and a variety of terminal styles.
The catalog includes a selection guide with case‑size tables, terminal‑selection advice, derating charts, and handling procedures. Users are encouraged to complete the inquiry form to obtain custom designs, and cautioned about crowbar discharges that can damage the thin metallized electrodes.
| Maximum rating | 1600 µF and 10,000 VDC |
|---|---|
| Type Z voltage range | 500 VDC to 2,000 VDC |
| Type Y voltage range | 2,000 VDC to 5,000 VDC |
| Maximum capacitance (type Z) | 1,600 µF at 1,000 VDC |
| Maximum capacitance (type Y) | 235 µF at 2,000 VDC |
| Capacitance tolerance | +10 % for type Y, +6 % for type Z |
| Operating temperature range | 0 °C to 65 °C |
Aerovox pulse capacitors are rated up to 10,000 VDC.
Type Y capacitors have a tolerance of ±10 %, while type Z capacitors have a tolerance of ±6 %.
Shorting wires should be connected between the terminals of any capacitor when it is not in use, and the unit must be fully discharged before handling.
