TE100RS THRU TE108RS glass passivated junction fast switching rectifiers, rated voltage of 50 to 800 volts, rated current of 1.0 ampere. Its features are: plastic package has UL 94V-O flammability classification, using flame retardant epoxy molding compound; glass passivated junction; 1 ampere operation temperature of TA=55℃, no thermal runaway; meets MIL-S-19500/228 environmental standards; fast switching for high efficiency.

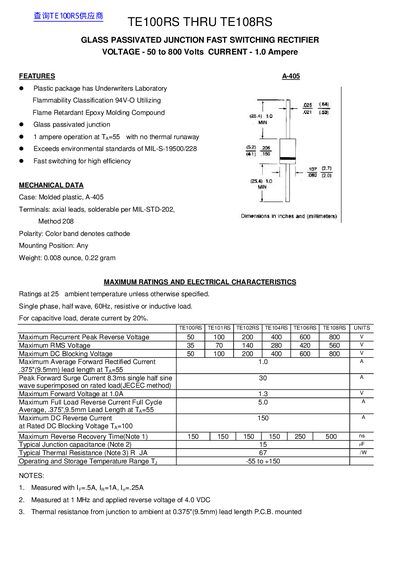

The TE100RS series through TE108RS are glass‑passivated junction fast switching rectifiers offered in a molded plastic A‑405 package. They feature flame‑retardant epoxy molding, axial leads compliant with MIL‑STD‑202, and a color‑band cathode polarity indicator.
The document provides maximum voltage and current ratings, reverse recovery times, junction capacitance, thermal resistance, and operating temperature limits, along with characteristic curves for forward voltage, reverse recovery, and surge current performance.
| Maximum Recurrent Peak Reverse Voltage | 50‑800 V (model dependent) |
|---|---|
| Maximum RMS Voltage | 35‑560 V (model dependent) |
| Maximum DC Blocking Voltage | 50‑800 V (model dependent) |
| Maximum Average Forward Rectified Current | 1.0 A |
| Peak Forward Surge Current | 30 A (8.3 ms half‑sine) |
| Maximum Forward Voltage at 1.0 A | 1.3 V |
| Maximum Full‑Load Reverse Current (full cycle) | 5.0 A |
| Maximum DC Reverse Current | 150 A |
| Typical Junction Capacitance | 15 pF |
| Typical Thermal Resistance (junction‑to‑ambient) | 67 W/°C |
| Operating Temperature Range | -55 °C to +150 °C |
| Package Type | Molded plastic, A‑405 |
| Terminal Type | Axial leads, solderable per MIL‑STD‑202 Method 208 |
| Weight | 0.008 oz (0.22 g) |
The rectifiers are rated for a maximum average forward rectified current of 1.0 A.
They can operate and be stored from –55 °C up to +150 °C.
