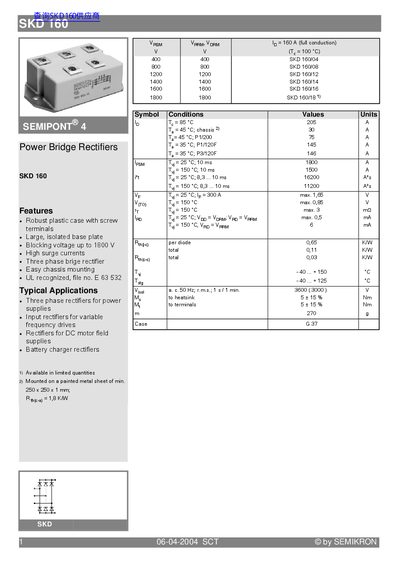

The document describes the features and characteristics of SEMIPONT® 4, including information on querying SKD160 suppliers.
The SKD 160 series are three‑phase bridge rectifier modules with a robust plastic case, isolated base plate, and high surge‑current capability. They are rated for blocking voltages up to 1800 V and can operate from –40 °C to +150 °C.
The modules are intended for use in power supplies, variable‑frequency‑drive input stages, DC‑motor field supplies, and battery charger applications. They mount easily on a painted metal sheet of at least 250 × 250 × 1 mm and comply with UL file no. E 63 532 T 40.
| Blocking voltage | 1800 V |
|---|---|
| Maximum junction temperature | 150 °C |
| Maximum continuous current | 300 A |
| Surge current (10 ms) | 1800 A |
The SKD 160 is rated for a blocking voltage up to 1800 V.
The device can operate up to a junction temperature of 150 °C.
