2SA1186 is a silicon PNP epitaxial planar transistor. It is used in audio and general purpose applications. The absolute maximum ratings are VCBO = -150 V, VCEO = -150 V, VEBO = -5 V, IC = -10 A, IB = -20 mA, and PC = -2 W. The electrical characteristics include hFE = 50 min, VCE(sat) = 4.0 V, fT = 110 MHz, and COB = 1.8 pF. The typical switching characteristics (common emitter) are ton = 0.25 µs, tstg = 0.8 µs, and tf = 0.2 µs. The external dimensions are MT-100 (TO3P). The weight is approximately 6.0 g.

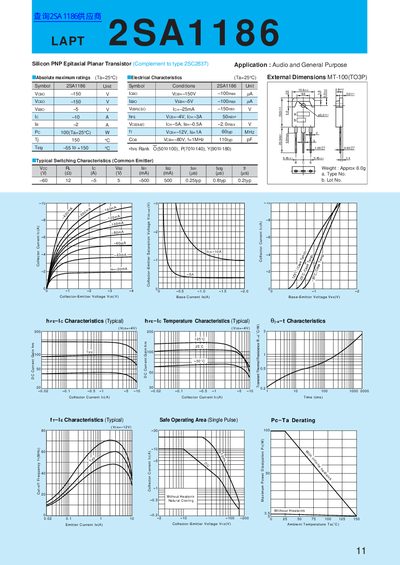

The LAPT 2SA1186 is a silicon PNP epitaxial planar transistor intended for audio and general‑purpose applications. The datasheet provides absolute maximum ratings, electrical characteristics, switching behavior, and physical dimensions.
Key sections include absolute maximum ratings (e.g., VCEO = ‑150 V, VBE = ‑5 V), typical electrical parameters such as hFE and cutoff frequency, and safe operating area curves for single‑pulse conditions.
