AUTOBOSS V30 Diagnostic Computer User Manual

V30 Diagnostic Computer User Manual, introduces the use of V30 Diagnostic Computer and precautions

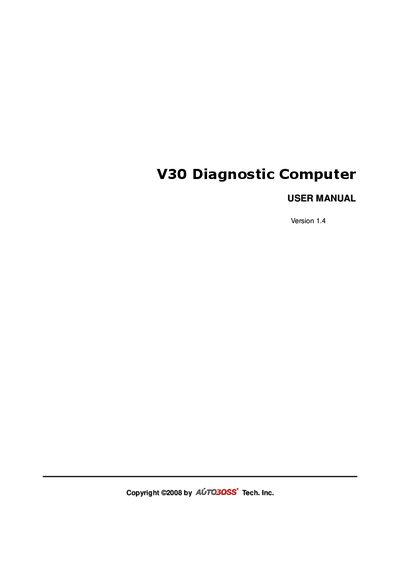

AUTOBOSS V30 Diagnostic Computer User Manual - cover page
Brand
V30
Category
Automotive supplies
Document type
User Manual
Language
English
Pages
35
File format
PDF
File size
2.4 MB
Published
01 June, 2012
Updated
30 September, 2023
MD5 checksum
D4CADA613407CAA0FBEC1D6D88DE6EFE
PDF
AUTOBOSS V30 Diagnostic Computer User Manual PDF

About this manual

This manual describes the V30 Diagnostic Computer, a handheld scanner used for vehicle ECU testing. It covers safety precautions, hardware layout, connector types, and basic operation procedures.

The document also details technical specifications, power requirements, software upgrading steps, and how to perform VIN writing and adaptation functions. Contact information for AUTOBOSS is provided for support and permission requests.

What's inside

  • Function and Feature
  • Layout of Main Unit
  • Technical Parameters
  • Power Supply & Cable Connection
  • Interface Instruction
  • Software Upgrading
  • Test Procedure
  • Engine ECU Testing Methods
  • Order Information

Specifications

CPUSAMSUNG ARM9 2410A, 200MHz
Memory64M
Flash CardSD card, 1G
Display5.6" VGA (640x480) ultra bright TFT
Power SupplyDC 8~12V, AC 110~250V 50Hz
PortsDiagnosis, COM, USB, Power
Operating SystemWINDOWS CE
Storage Temperature-30~90°C
Working Temperature-10~80°C
Humidity<90%

Frequently asked questions

What is the power supply voltage range for the V30?

The V30 can be powered by DC 8~12 V or AC 110~250 V at 50 Hz.

Which operating system does the V30 run?

The device runs Windows CE.
