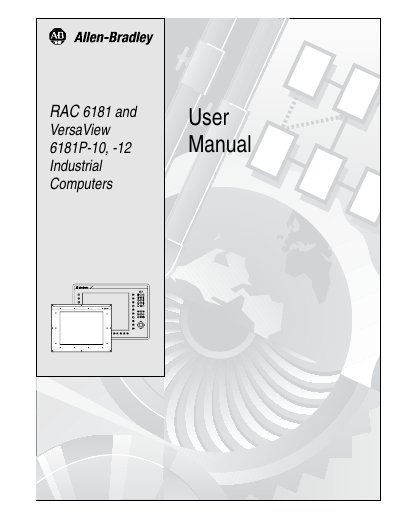

This manual provides operating instructions for the RAC 6181 and VersaView 6181P-10, -12 Industrial Computers.
This manual provides detailed instructions for installing, configuring, and maintaining the RAC6181 and VersaView 6181P‑10/‑12 industrial computers. It includes safety guidelines, hardware specifications, and step‑by‑step procedures for adding or removing components such as power supplies, drives, memory modules, and touchscreens.
The document also contains troubleshooting guidance, cleaning and battery‑replacement procedures, and appendices with full electrical, environmental, and CPU specifications for the various computer versions.
| Display Size | 10.4 in, 12.1 in, 12.1 in keypad version |
|---|---|
| Resolution | 640×480 (10.4 in), 800×600 (12.1 in) |
| Power Consumption (AC option) | 280 VA (2.33 A @120 V, 1.17 A @240 V) |
| Power Consumption (DC option) | 108 W maximum |
| Line Voltage (AC option) | 85‑132 VAC, 170‑264 VAC autoswitching |
| Operating Temperature | 5 °C to 50 °C |
| Storage Temperature | -25 °C to 60 °C |
The RAC6181 accepts 85‑132 VAC or 170‑264 VAC autoswitching for the AC power option.
The AC version consumes 280 VA (about 2.33 A at 120 V or 1.17 A at 240 V).
The computer is rated for an operating temperature range of 5 °C to 50 °C.
The DC option is rated for up to 108 watts of power consumption.
