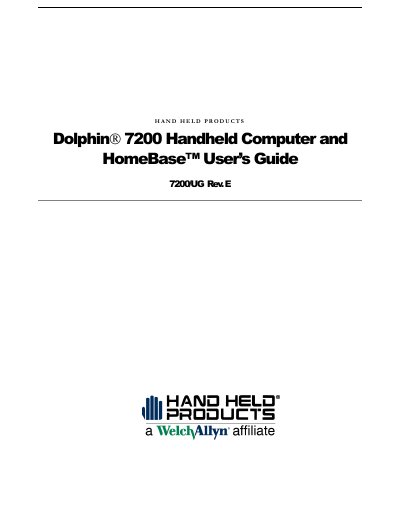

This is a product manual that introduces the use of Dolphin 7200 handheld computer and HomeBase™.
This guide introduces the Dolphin 7200 handheld computer, a rugged, one‑handed data‑collection device with optional RF, iButton, RS‑232, and 2D imaging modules. It explains how to unpack, charge the battery, power on, and configure basic settings.
The manual covers detailed sections on safety, battery care, hardware features, wireless options, peripheral connections, HomeBase networking, troubleshooting, warranty, and includes a full appendix of terminal specifications.
| Case material | Polycarbonate ABS Blend, splash‑resistant, one‑piece module |
|---|---|
| Weight (including battery) | 12 oz (340 g) for the Batch model |
| Display | 8 lines × 20 characters, 119 × 73 graphics pixels, backlit |
| Primary battery | 3.6 V 3‑cell NiMH pack, 1,500 mAh |
The guide shows the required safety labels in Figure 1, which must be placed on the back panel of laser‑equipped Dolphin 7200 terminals.
The Dolphin 7200 Batch terminal weighs 12 oz (340 g) including its battery.
