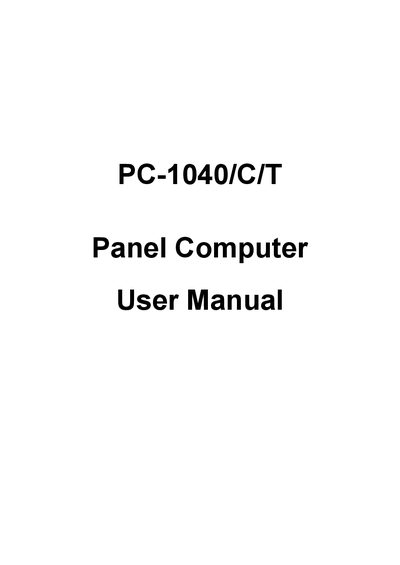

PC-1040/C/T Panel Computer User Manual, This product adopts high-performance embedded computer hardware. It is designed for operations under relatively severe environments of multimedia ad/industry personal controlling equipment/instruments/military affairs/intelligent product and featuring such unique safeguards as anti-vibration, heat-emission, wide power supply input, etc. The delicately optimized design meets the requirements of all users in its applications to various conditions and occasions. This product is small in shape, easily installed and simple to operate. Moreover, the mini Panel PC is easily adaptable to a professional electronic equipment of industry personal controlling as well as its ease of extensive use such as multimedia ad/instruments/military affairs/intelligent product field. With its excellent quality and exquisite manufacturing technology, your product will bring limitless entertainment and enjoyment to you. In order to ensure the correct installation and the most efficient service, please read this user manual carefully.
The PC-1040/C/T is a compact, rugged panel computer designed for industrial, multimedia, and military applications. It features a 10.4‑inch TFT LCD touch screen, Intel Pentium M CPU, and a wide‑voltage power input (12‑36 V).
This manual provides product description, specifications, wiring diagrams, operation instructions, troubleshooting tips, and a list of accessories to help users install, configure, and maintain the unit safely and efficiently.
| Display screen | 10.4 inch TFT LCD 800×600 |
|---|---|
| Contrast | 500:1 |
| Brightness | 170 cd/m² |
| View angle | 160°/160° (horizontal/vertical) |
| Touch screen | Fourth‑line resistance |
| CPU | Intel Pentium M 1.0 GHz |
| Memory | 256 MB DDR (up to 1 GB) |
| Hard drive (optional) | IDE 5400 RPM up to 120 GB |
| CF card (optional) | 2 GB up to 8 GB |
| Chipset | Intel 855 North Bridge, Intel ICH4 South Bridge |
| Video output | VGA, S‑VIDEO |
| Audio output | AC97 4‑channel, 3.1 channels |
| Ethernet | 10/100 M Ethernet RJ‑45 |
| Wireless | Wi‑Fi 802.11b (USB), Bluetooth (USB) |
| Power supply | DC 12‑36 V |
| Current | 2.3 A‑3.2 A |
| Power consumption | <40 W |
| Dimensions | 280 mm × 210 mm × 60 mm |
| Weight | 2370 g (with HD 90 g) |
| Operating temperature | -0 °C to 45 °C |
| Storage temperature | -20 °C to -60 °C |
| Operating humidity | 10 %–85 % |
| Storage humidity | 10 %–90 % |
Sleep mode requires a supported display card driver; install the correct driver to enable it.
Install Windows XP SP2 (or later) which includes the necessary USB 2.0 driver for the ICH4 controller.
Windows XP and Windows 2003 support Hyper‑Threading; the feature works only on Pentium 4 CPUs.
