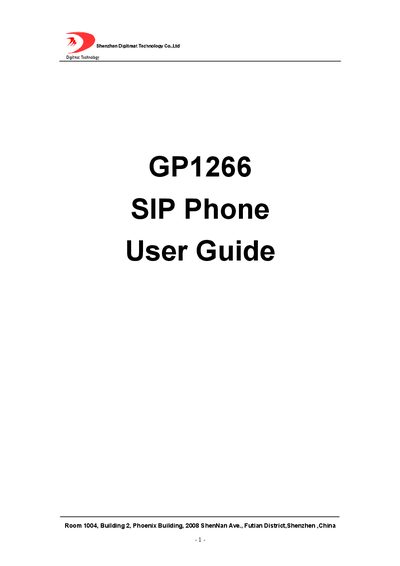

This manual introduces the basic functions and usage methods of GP1266 SIP phone.
The guide introduces the GP1266 SIP phone, highlighting its four‑line dot‑matrix LCD, ten speed‑dial keys, and a range of calling features. It details hardware specifications such as the AR1688 chipset, 2 MB flash, and Ethernet connectivity, as well as software capabilities like multiple audio codecs and web‑based configuration.
Installation steps cover the parts list, handset connection, Ethernet cabling, and power options (POE or AC adapter). Subsequent sections explain configuration via keypad or web browser, call handling functions, firmware upgrade procedures, and how to restore factory settings. An annex provides the digital‑character key map for the phone.
| Main chip | AR1688 (MCU 60MHz; DSP 72MIPS) |
|---|---|
| On‑chip SRAM | 116 KB |
| Codec resolution | 18 bits |
| Program memory | 2 MB Flash |
| Display | 128 × 64 graphics dot matrix LCD |
| Ethernet ports | 2 × 10/100 M |
| Power over Ethernet | Optional |
| Operating voltage | 48 V DC (POE) or 5 V AC/DC |
| Maximum power consumption | 4.5 W |
| Dimensions (L×W×H) | 238 × 188 × 70 mm |
| Operating temperature | 0 °C to 45 °C |
| Storage temperature | -30 °C to 85 °C |
| Humidity range | 10 % to 90 % (no dew) |
| Phone book capacity | 100 entries |
The phone can be powered via 48 V DC Power over Ethernet (POE) or a 5 V AC/DC adapter, with a maximum consumption of 4.5 W.
The phone book can store up to 100 entries.
It includes two 10/100 M Ethernet connectors.
