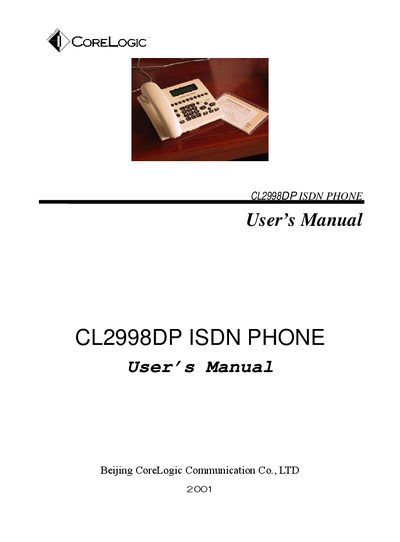

CL2998DP ISDN PHONE User’s Manual is the user manual of CoreLogic CL2998DP ISDN PHONE. It mainly introduces the features and characteristics of this product, such as ISDN independent features, ISDN features, and keys.
This manual introduces the CoreLogic CL2998DP ISDN Phone, describing its independent ISDN features, baby‑sitting monitoring, and 3‑party conference capabilities. It also outlines the required installation and wiring steps, including handset and RJ‑45 connections.
The guide details the phone’s front‑panel layout, main‑menu flow charts, and the six operating states such as idle, incoming call, active call, call waiting, held call, and 3‑party conference. A specifications section lists protocol, interface, power, dimensions, temperature, and humidity limits.
| ISDN protocol | EBuro‑ISDN (DSS1) |
|---|---|
| Size | 210 × 200 × 100 mm |
| Operating temperature | 0 °C to 50 °C (0 °C to 60 °C storage) |
| Humidity range | 20 % to 90 % non‑condensing |
The phone provides 10 direct memory‑dialing keys.
The caller list can hold up to 50 entries.
The phone supports a 3‑party conference call.
The phone measures 210 mm × 200 mm × 100 mm.
