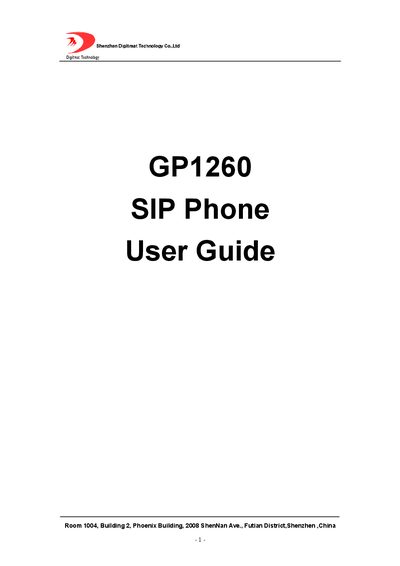

This document is the GP1260 SIP Phone User Guide, which introduces the features and characteristics of the product
The GP1260 SIP IP phone from Digitmat offers a four‑line dot‑matrix LCD, ten speed‑dial keys, and a range of calling features. It supports multiple audio codecs and standard SIP protocols for reliable voice communication over Ethernet networks.
This user guide covers product overview, hardware specifications, installation steps, appearance details, configuration via keypad or web interface, usage instructions, firmware upgrade procedures, and how to restore factory settings.
| Main chip | AR1688 (MCU 60MHz; DSP 72MIPS) |
|---|---|
| On‑chip SRAM | 116 KB |
| Codec | 18‑bit high‑performance on‑chip codec |
| Program memory | 2 MB Flash |
| Display | 128 × 64 graphics dot LCD |
| Ethernet ports | 2 × 10/100 M |
| Operating voltage | 9 V DC |
| Maximum power consumption | 4.5 W |
| Dimensions (L × W × H) | 238 × 188 × 70 mm |
| Operating temperature | 0 °C to 45 °C |
| Storage temperature | -30 °C to 85 °C |
| Humidity range | 10 % to 90 % (no dew) |
The GP1260 features a four‑line dot‑matrix LCD display.
The phone provides ten speed‑dial keys.
It operates from a 9 V DC supply and consumes up to 4.5 W.
The phone book can hold up to 100 entries.
