ATCOM AT-323 IP Net Phone is a telephone that transports voice using the IP protocol, offering low price and excellent sound quality. It is suitable for voice transmission within enterprise LANs, city LANs, and Internet work. This phone features a unique design and internal line modes.

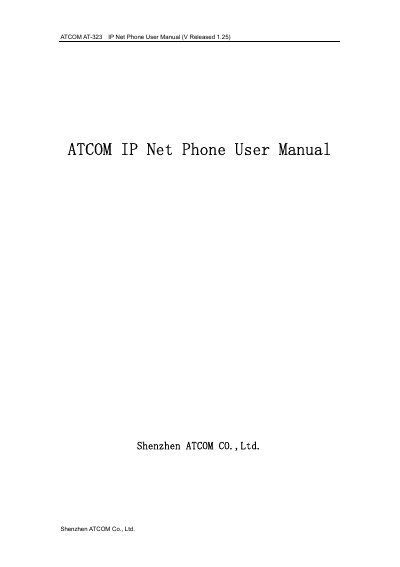

This manual introduces the ATCOM AT-323 IP Net Phone, describing its purpose, suitable uses, and hardware features. It explains the phone’s appearance, function keys, and supported standards and protocols.
The guide covers installation, power and network requirements, detailed configuration methods (keypad, web interface, Telnet, PalmTool), and everyday usage such as making calls, viewing call records, and upgrading firmware.
| Main chip | pa1688 50MHz |
|---|---|
| Data Memory | 2 MB SDRAM |
| Program Memory | 1 MB Flash |
| Ethernet Jack | 10/100 M |
| Power adapter input | AC 230 V |
| Power adapter output | 7.5 V DC, 0.8 A |
| Maximum power consumption | 5 W |
| Operating temperature | 0 °C to 50 °C |
| Storage temperature | -30 °C to 65 °C |
| Humidity range | 10 % to 90 % (no dew) |
| Dimensions | 198 × 176 × 60 mm (L × W × H) |
Open a web browser (IE6.0) and point it to the phone’s IP address; the web interface allows you to change settings such as network parameters and account information.
