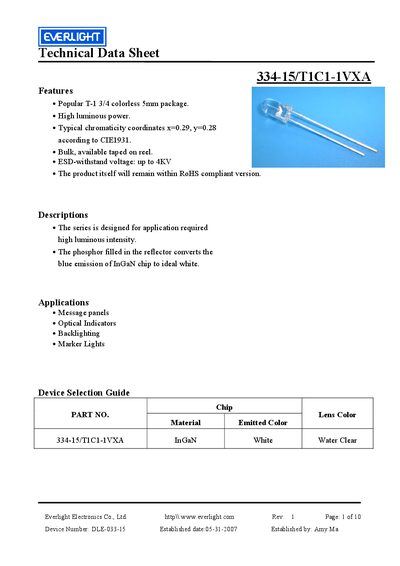

This datasheet provides the specifications, features, dimensions, etc. of 334-15/T1C1-1VXA, a white LED with high luminous efficacy and color consistency.
The Everlight 334-15/T1C1-1VXA is a high‑luminous‑intensity white LED designed for message panels, optical indicators, backlighting and marker lights. The device uses an InGaN chip with a phosphor‑filled reflector to convert blue emission to white, and complies with RoHS.
Key specifications include a continuous forward current of 30 mA, peak forward current of 100 mA, forward voltage 2.8‑3.6 V, luminous intensity 11 250‑22 500 mcd, chromaticity coordinates x = 0.29, y = 0.28, and an ESD withstand voltage of 4 kV. Recommended soldering conditions and packaging details are also provided.
| Continuous Forward Current | 30 mA |
|---|---|
| Reverse Voltage | 5 V |
| Operating Temperature | -40 ~ +85 °C |
| Forward Voltage | 2.8 ~ 3.6 V |
| Luminous Intensity | 11 250 ~ 22 500 mcd |
| Chromaticity x | 0.29 |
| Chromaticity y | 0.28 |
| ESD Withstand Voltage | 4 kV |
The LEDs are packed 500 pieces per bag, 10 bags per box, and 2 boxes per carton.
It is suitable for message panels, optical indicators, backlighting and marker lights.
