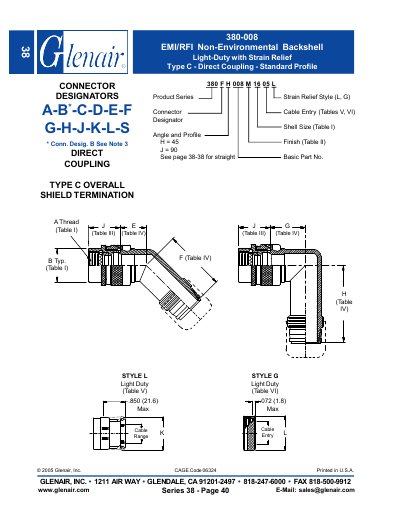

The 380-008 backshell is part of Glenair's Series 38 line and provides a light‑duty, non‑environmental solution for EMI/RFI protection with built‑in strain relief. It uses a Type C direct‑coupling interface and a standard profile for easy integration. Key specifications include a maximum cable range of 0.5 in (15.1 mm), a maximum cable entry of 0.125 in (3.2 mm), and standard finishes such as Cadmium Plate, Olive Drab Electroless Nickel. Detailed dimensions for elbows and shell sizes are provided in the tables.
| Max Cable Range | 0.5 in (15.1 mm) |
|---|---|
| Max Cable Entry | 0.125 in (3.2 mm) |
| Standard Finish | Cadmium Plate, Olive Drab Electroless Nickel |
| Elbow Dimension E Max | 0.639 in (16.2 mm) |
The maximum cable range is 0.5 in (15.1 mm).
The maximum cable entry is 0.125 in (3.2 mm).
Available finishes are Cadmium Plate, Olive Drab Electroless Nickel.
Connector designator C is used for Type C direct coupling.
