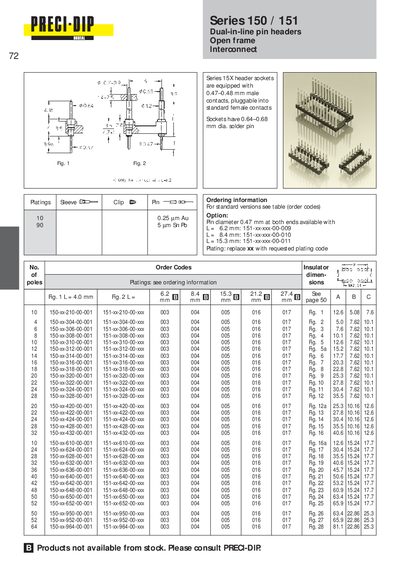

This document describes the features and characteristics of the 72 Series 150/151 dual-in-line pin headers and open frame interconnect Series 15X header sockets. The pin headers are equipped with 0.47-0.48mm male contacts, pluggable into standard female contacts. The sockets have 0.64-0.68mm solder pins. Various sizes and plating options are available.
The Series150/151 are open‑frame, dual‑in‑line pin headers designed for interconnect applications. They feature 0.47‑0.48 mm male contacts that plug into standard female contacts, and solder pins with a diameter of 0.64‑0.68 mm.
Ordering information includes multiple body lengths (L = 6.2 mm, 8.4 mm, 15.3 mm) and customizable plating codes. Detailed part numbers for each length and configuration are listed in the table.
| Contact size (male) | 0.47‑0.48 mm |
|---|---|
| Solder pin diameter | 0.64‑0.68 mm |
| Pin diameter (both ends) | 0.47 mm |
| Form factor | Open frame |
The male contacts are 0.47‑0.48 mm in size.
Replace “xx” in the order code with the requested plating code.
