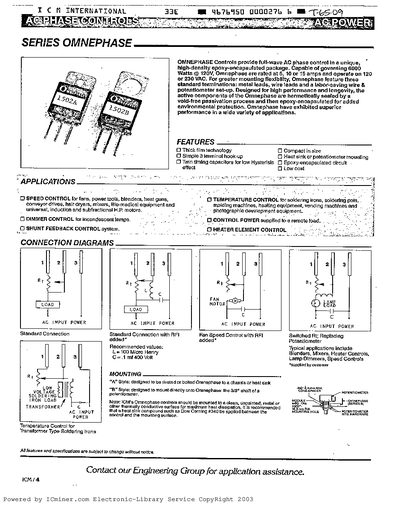

The Omnephase controls deliver full‑wave AC phase control in a compact, epoxy‑encapsulated package. They are capable of handling up to 6000 W at 120 V, with current ratings of 6, 10 or 15 A, and operate from either 115 V or 230 V AC. Three standard terminations (metal leads, wire leads, and a wire‑potentiometer arrangement) give flexible mounting, and the hermetically sealed components ensure durability.
Specifications include input voltage of 115 V or 230 V RMS, operating temperature from –40 °C to +95 °C, and current ratings of 2, 6, 10 and 15 A. The device features low hysteresis (≈15 % typical), a forward voltage drop of 1.5 V, leakage current of 4.5 mA, and weighs about 0.4 oz (10 g). Ordering options cover different current ratings, potentiometer and wire configurations, and heat‑sink styles.
| Input Voltage | 115 or 230 VAC RMS |
|---|---|
| Operating Temperature | -40 °C to +95 °C |
| Storage Temperature | -40 °C to +105 °C |
| Frequency | 50/60 Hz |
| Maximum Current Rating | 2, 6, 10 and 15 A |
| Minimum Current | 40 mA |
| Hysteresis | 15 % typical |
| Forward Voltage Drop | 1.5 V |
| Leakage Current | 4.5 mA |
| Weight | 0.4 oz (10 g) |
| Off‑State Voltage | 400 V |
It accepts either 115 V or 230 V AC RMS.
The device is offered in 2 A, 6 A, 10 A and 15 A ratings.
