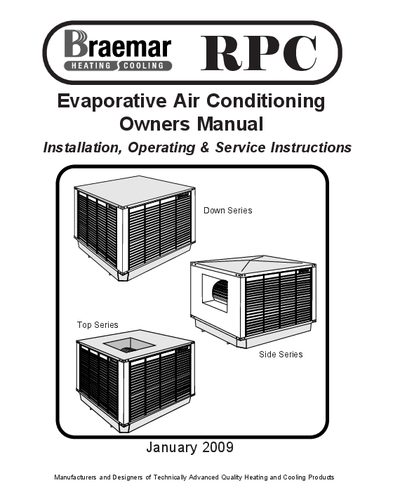

This manual introduces the product features and usage instructions of the RPC evaporative air conditioner
This manual provides the safety information, installation steps, wiring, and commissioning procedures for Braemar Down Series evaporative air‑conditioning units. It also covers wall‑control functions, two‑speed fan control, and a detailed maintenance schedule.
The guide includes troubleshooting tips, filter‑pad replacement instructions, and recommended clearances for safe installation. It is intended for installers, service agents, and owners of the RPC250, RPC320, RPC400 and RPC450 models.
| Required dropper size for RPC250/320/400/450 | 550 × 550 mm |
|---|---|
| Minimum exhaust opening per airflow | 1 m² per 3000 m³/h |
| Recommended clearance from gas heater flues | 1.5 m |
| Service interval | Twice a year |
The cooler must be installed at least 1.5 metres away from a gas heater flue.
It should be serviced twice a year – at the end of the summer season and before the next summer season.
Clean the pads or replace them with new ones, following the replacement procedure in the manual.
A 550 × 550 mm square dropper is required for the RPC400 model.
