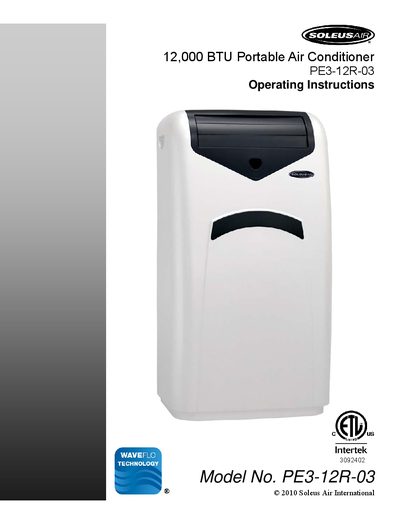

This document is an operating instruction manual for the Soleus Air PE3-12R-03 Portable Air Conditioner, providing information on how to use and maintain the product.
This manual explains how to install, operate, and maintain the Soleus Air PE3-12R-03 portable air conditioner. It includes safety precautions, package contents, specifications, and detailed instructions for installing the dual‑hose window kit and LCDI power cord.
Later sections cover routine maintenance such as filter cleaning, housing care, and storage, as well as warranty terms and contact information for technical support.
| Cooling Capacity | 12,000 BTU/H |
|---|---|
| Dehumidifying Capacity | 60 pts per Day |
| Power Consumption | 1200 Watts, 10.8 Amps |
| Air Flow Volume | 225 CFM |
| Power Source | 115 V~ 60 Hz |
| Sound Pressure Level | 46 dB(A) |
| Net Weight | 81 Lbs |
| Dimensions (assembled) | 17.5" W x 32.75" H x 19" D |
| Refrigerant | R-410A |
Maintain at least 10 inches (25 cm) clearance space around the unit.
It is recommended to clean the filter once every two weeks or as needed.
No. The manual states not to use an adapter plug or extension cord.
The unit comes with a one‑year limited warranty.
