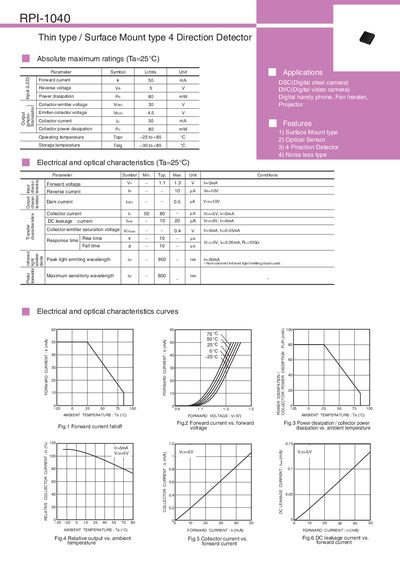

RPI-1040 is a surface mount type optical sensor with 4 direction detection function and low noise function.
The RPI-1040 is a surface‑mount infrared photodiode with a built‑in 4‑direction detector. It is intended for use in devices such as digital cameras, video cameras, handheld phones, fan heaters and projectors. The document provides absolute maximum ratings, electrical and optical characteristics, and mechanical dimensions.
Key features include a forward current rating of up to 50 mA, reverse voltage of 5 V, and a peak emission wavelength of 950 nm. Operating temperature ranges from 25 °C to +85 °C, with storage limits from –30 °C to +85 °C. Application circuits and connection diagrams are also included.
| Forward current (If) max | 50 mA |
|---|---|
| Reverse voltage (Vr) | 5 V |
| Power dissipation (Po) | 80 mW |
| Collector‑emitter voltage (Vceo) | 30 V |
| Emitter‑collector voltage (Veco) | 45 V |
| Collector current (Ic) | 30 mA |
| Operating temperature range | 25 °C to +85 °C |
| Storage temperature range | -30 °C to +85 °C |
| Peak emission wavelength | 950 nm |
| Maximum sensitivity wavelength | 800 nm |
The maximum forward current is 50 mA.
It is rated for a reverse voltage of 5 V.
It can operate from 25 °C up to +85 °C.
Digital still cameras, digital video cameras, handheld phones, fan heaters and projectors.
