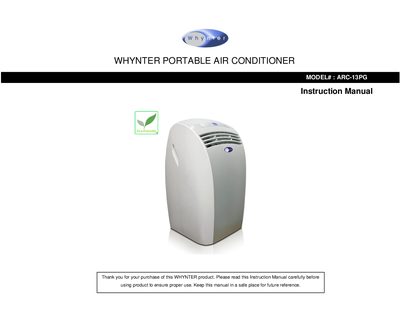

This document is the instruction manual for whynter portable air conditioner. It introduces the product's use methods and precautions
This manual explains how to install, operate, and maintain the Whynter ARC-13PG portable air conditioner safely. It includes safety precautions, disposal instructions, and warranty details to ensure reliable performance.
Installation steps cover exhaust hose setup, window kit fitting, and optional door kit use. Operational guidance includes fan speeds, thermostat settings, and dehumidifying functions, while technical data lists the unit's capacity, power requirements, and dimensions.
| Cooling capacity | 13,000 BTU |
|---|---|
| Recommended room size | 450 — 500 sq. ft. |
| EER | 11.06 |
| Power supply | 115v/ 60Hz |
| Maximum power input | 910 Watts |
| Maximum input current | 8.20 Amps |
| Dehumidifying capacity | 43 Pts / Day |
| Thermostat range | 61°F to 86°F / 16°C to 32°C |
| Refrigerant | R-410A |
| Compressor type | Rotary |
| Air flow (max) | 380 m3/ Hour |
| Fan speeds | 3 (H, M, L) |
| Exhaust hose length | 5 ft. |
| Unit dimensions | 18" Wx 15.5" D x 30" H |
| Unit weight | 66 lbs |
Pull out about 6" of one end of the hose, screw the connector clockwise, snap it into place, and extend only the length needed, not exceeding 9'.
Do not obstruct inlet filters, avoid bending the hose, keep the unit upright on a level surface, use a grounded outlet, and never modify the unit yourself.
The unit is suitable for rooms between 450 and 500 square feet.
