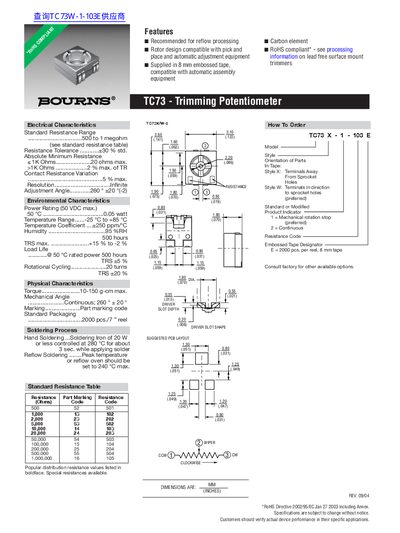

The document is about the RoHS Directive 2002/95/EC, which includes the specifications of the TC73 trimming potentiometer. It provides information on the electrical characteristics, environmental characteristics, and physical characteristics of the product. The standard resistance range of the trimming potentiometer is 500 to 1 megohm, with a resistance tolerance of ±30%. The minimum resistance is ≤ 1K Ohms with a maximum of 20 ohms. The contact resistance variation is 5% maximum, and the resolution is infinite adjustment. The product has a power rating of 0.05 watt at 50 °C, a temperature range of -25 °C to +85 °C, and a temperature coefficient of ±250 ppm/°C. It is also humidity resistant up to 95% RH for 500 hours. The trimming potentiometer is compatible with reflow processing and pick and place equipment, and it is supplied in 8 mm embossed tape for automatic assembly. It features a carbon element and is RoHS compliant.
This document provides the electrical characteristics of the TC73 trimming potentiometer, covering standard resistance ranges from 500 Ω to 1 MΩ, resistance tolerance of ±30 % (standard) and tighter tolerances for higher values. It also details power rating, temperature and humidity limits, mechanical specifications such as torque and adjustment angle, and recommended soldering processes.
Additional sections include a standard resistance table, suggested PCB layout guidelines, packaging details (2000 pcs per 7 in reel), and ordering instructions for the TC73X/W‑2 variant, including part marking codes and tape orientation options.
| Standard Resistance Range | 500 Ω to 1 MΩ |
|---|---|
| Resistance Tolerance | ±30 % (standard) |
| Temperature Range | -25 °C to +85 °C |
| Humidity Resistance | 95 % RH for 500 h |
| Torque | 10‑150 g‑cm max. |
| Mechanical Adjustment Angle | 260 ° ±20 ° |
| Soldering Iron Temperature (hand soldering) | 280 °C for ~3 s |
The standard resistance tolerance is ±30 % (standard).
Use a soldering iron of 20 W or less set to 280 °C for about 3 seconds.
It operates from –25 °C to +85 °C.
