This is a coffee machine maintenance manual, which mainly introduces the structure, operation, troubleshooting and maintenance methods of coffee machine

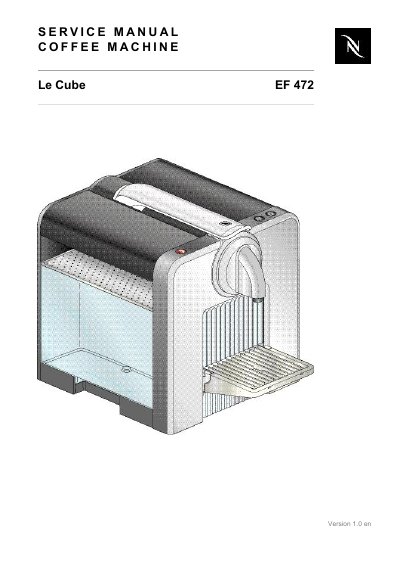

This manual provides service personnel with all necessary information to correctly handle, maintain and repair the Le Cube EF 472 coffee machine. It includes an overview of the rating plates, detailed structure diagrams, technical data, and step‑by‑step operating instructions.
Additional sections cover troubleshooting checklists, repair procedures for major components, functional tests, daily maintenance guidelines, and a comprehensive spare‑parts list with part numbers.
| Power rating | Thermoblock 1 200 W, Pump 70 W |
|---|---|
| Pump pressure | Max. permissible 17.5 bar ±1.5 bar |
| Water tank capacity | 0.9 L |
| Dimensions (W × H × D) | 226 mm × 230 mm × 230 mm |
The pump can deliver up to 17.5 bar, with a tolerance of ±1.5 bar.
