KD2008-CF10A printhead is a printhead produced by Toshiba, which is suitable for gaming equipment, ATMs and other scenes, with perfect printing quality and high energy efficiency.
The KD2008-CF10A is a printhead designed for plain‑paper printers, low‑speed ticket vendors, and measuring terminal printers. It belongs to Rohm's CF and CG series, offering high‑frequency clock control and efficient energy consumption.

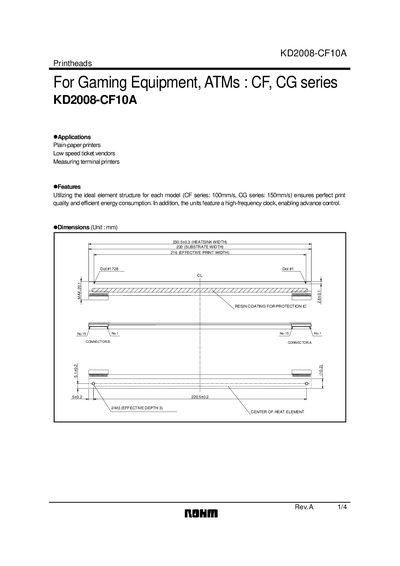

This document lists the device dimensions, equivalent circuit, pin assignments, timing chart, and detailed electrical characteristics such as voltage, power, clock frequency, and operating temperature. An appendix contains legal notices and contact information.
| Effective printing width | 216 mm |
|---|---|
| Dot pitch | 0.125 mm |
| Total dot number | 1728 dots |
| Average resistance value | 1000 Ω |
| Applied voltage | 24.0 V |
| Applied power | 0.32 W/dot |
| Print cycle | 1.25 ms |
| Pulse width | 0.50 ms |
| Maximum dots energized simultaneously | 864 dots |
| Maximum clock frequency | 16 MHz |
| Maximum roller diameter | 20.0 mm |
| Running life / pulse life | 50 / 5x10? km / pulses |
| Operating temperature | 5 to 45 °C |
They are used in plain‑paper printers, low‑speed ticket vendors, and measuring terminal printers.
The maximum clock frequency is 16 MHz.
The applied voltage is 24.0 V.
