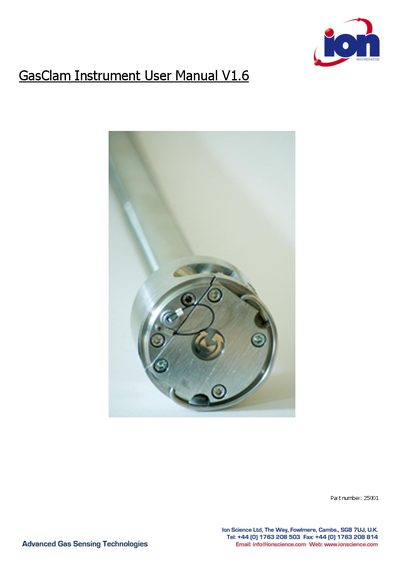

This manual provides an introduction to the use of the GasClam instrument.
The GasClam is an in‑situ borehole gas monitor designed to measure methane, carbon dioxide, oxygen and other gases, as well as temperature, barometric pressure and borehole pressure. The manual covers installation, software setup, data handling, and optional sensor upgrades such as PID, CO, H₂S and water‑depth sensors.
Special attention is given to the effects of water and flooding on the instrument. The manual explains how to keep the unit dry, replace the moisture‑stripping filter, and use venting accessories to prevent water ingress. It also details routine calibration, bump testing, and service procedures to ensure reliable long‑term operation.
| Ingress Protection Rating | IP‑68 (submersible to 10 m for 1 week) |
|---|---|
| Number of Gas Sensors | Four built‑in gas sensors |
| Battery Type | 1.5 V Duracell (fitted) |
| Default Sampling Interval | Every hour |
Hold the remote button down for two seconds; the red LED will flash rapidly indicating the sampling mode.
The GasClam has an IP‑68 rating, allowing submersion to 10 m for up to one week.
Replace the filter after every 800 samples or whenever the unit is visited for service.
