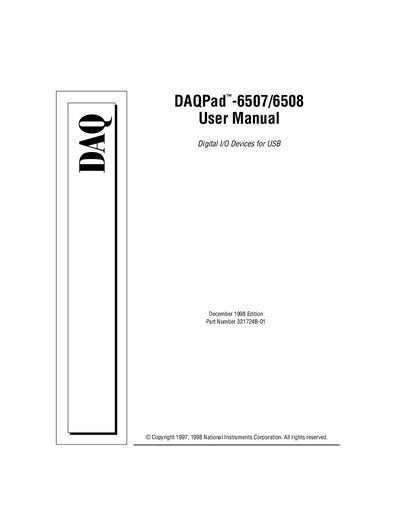

The DAQPad ™-6507/6508 is a digital I/O device for USB DAQPad-6507/6508. This device has various features and characteristics, and can be used for data acquisition and control applications.
The DAQPad-6507 and DAQPad-6508 are digital I/O devices that connect to USB‑compatible computers for high‑performance data acquisition and control. This manual describes their mechanical and electrical aspects, installation, configuration, signal connections, and programming options.
It includes detailed pin assignments, timing specifications, a functional theory of operation, a full specifications appendix, a data sheet for the OKI 82C55A peripheral interface, common troubleshooting questions, and contact information for technical support.
| Part Number | 321724B-01 |
|---|---|
| Device Type | Digital I/O device for USB‑compatible computers |
| Warranty Period | One year from shipment |
| Peripheral Interface Chip | OKI 82C55A CMOS programmable peripheral interface |
They are digital I/O devices for USB‑compatible computers.
The specifications are listed in Appendix A of the manual.
The devices use the OKI 82C55A CMOS programmable peripheral interface.
