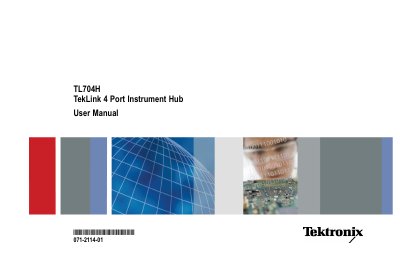

TL704H TekLink 4 Port Instrument Hub ZZZ User Manual is the user manual of TekLink 4 Port Instrument Hub ZZZ released by Tektronix
This manual describes the TL704H TekLink 4‑Port Instrument Hub, covering safety guidelines, installation steps, connector details, and power connections. It also includes mounting instructions and troubleshooting tips for reliable operation.
Technical specifications such as current consumption, temperature and humidity ranges, altitude limits, and physical dimensions are listed, along with warranty terms and contact information for Tektronix support.
| Current Consumption | <0.5 A DC from 5 V |
|---|---|
| Operating Temperature | 0 °C to +50 °C |
| Non‑operating Temperature | -20 °C to +60 °C |
| Operating Humidity (High) | 40 °C‑50 °C, 10 %‑60 % RH |
| Operating Humidity (Low) | 0 °C‑40 °C, 10 %‑90 % RH |
| Non‑operating Humidity (High) | 40 °C‑60 °C, 5 %‑60 % RH |
| Non‑operating Humidity (Low) | 0 °C‑40 °C, 5 %‑90 % RH |
| Operating Altitude | Up to 3,000 m (10,000 ft) |
| Non‑operating Altitude | Up to 15,240 m (50,000 ft) |
| Height | 48.25 mm (1.90 in) |
| Width | 133.35 mm (5.25 in) |
| Depth | 133.35 mm (5.25 in) |
| Weight | 560 g (1.25 lb) |
Tektronix warrants the product for one (1) year from the date of shipment.
In North America, call 1‑800‑833‑9200 or visit www.tektronix.com for worldwide contacts.
