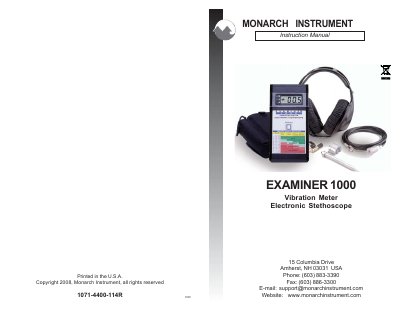

This file is the instruction manual for the EXAMINER 1000 vibration meter electronic stethoscope
The EXAMINER 1000 is a handheld vibration meter and electronic stethoscope designed for predictive maintenance of rotating machinery. It uses a piezoelectric accelerometer to capture acceleration, velocity and envelope data, and displays results on a 3.5‑digit LCD.
The manual covers safeguards, device setup, measurement procedures, data‑collection workflow, specifications, troubleshooting, and a glossary of vibration terms. It also explains how to interpret ISO 10816 vibration severity charts and how to use trend comparison for condition monitoring.
| Vibration sensor | Piezoelectric accelerometer 100 mV/g |
|---|---|
| Display | LCD 3.5‑digit |
| Acceleration range | 0.01‑19.99 g (RMS) |
| Velocity range | 0.01‑19.99 in/sec, 0.1‑199.9 mm/sec (RMS) |
| Frequency range (overall) | 10 Hz – 10 kHz |
| Power source | 2 AA alkaline batteries |
| Operating time | 20 hours continuous |
It can run for 20 hours continuously without headphones.
It uses a piezoelectric accelerometer with a sensitivity of 100 mV/g.
The instrument is powered by two AA alkaline batteries.
The device measures frequencies from 10 Hz up to 10 kHz.
