JO53 is a crystal oscillator produced by Jauch Quartz. It has a working frequency range of 0.5MHz to 80MHz, a working voltage of 2.5V, a temperature range of -10℃ to +70℃, and a frequency stability of ±50ppm. The output load is 15pF and 30pF.

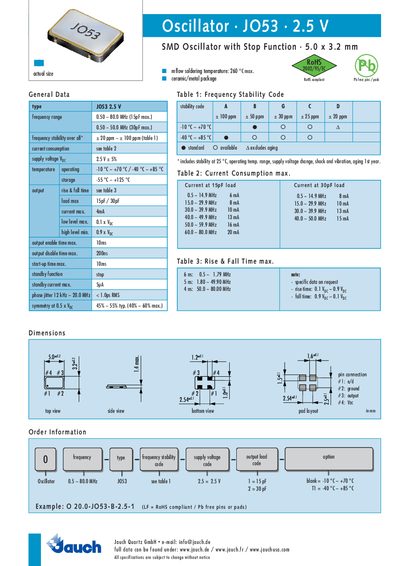

The JO53 is a surface‑mount SMD oscillator with a stop function, sized 5.0 × 3.2 mm and RoHS‑compliant. It operates from a 2.5 V supply and covers a wide frequency range from 0.50 MHz to 80.0 MHz.
Key electrical data include frequency stability codes, current consumption per frequency band, output rise/fall times, and enable/disable timings. The component is supplied in reels of 500 pieces, with standard reflow soldering limits of up to 260 °C.
| Frequency range | 0.50 – 80.0 MHz |
|---|---|
| Supply voltage | 2.5 V |
| Operating temperature | -40 °C to +85 °C |
| Current consumption (0.5–14.9 MHz, 15 pF load) | 6 mA |
| Current consumption (0.5–14.9 MHz, 30 pF load) | 8 mA |
| Output enable time (max) | 10 ms |
| Output disable time (max) | 200 ns |
| Maximum reflow soldering temperature | 260 °C |
The JO53 operates from a 2.5 V supply.
It covers frequencies from 0.50 MHz up to 80.0 MHz.
It consumes 6 mA under those conditions.
The part can be reflowed up to 260 °C.
