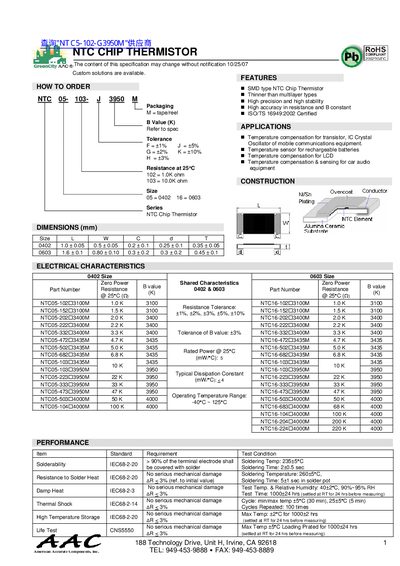

This document provides specifications and characteristics of American Accurate Components, Inc. NTC CHIP THERMISTOR, including dimensions, electrical characteristics, zero power resistance, and B value.
This datasheet provides detailed information on the NTC5-102-G3950M chip thermistor, including its physical dimensions, construction, and electrical characteristics. It also lists ordering options, applications, and performance requirements such as solderability and thermal shock resistance.
Key data include resistance values at 25 °C, B‑value specifications, tolerance ranges, and rated power. The document is intended for designers and engineers selecting thermistors for temperature compensation, sensing, and other electronic applications. This manual is written in Italian.
| Resistance at 25 °C (NTC5-102) | 1.0 kΩ |
|---|---|
| B‑value (K) for NTC5-103 | 3950 K |
| Tolerance of B‑value | ±3 % |
| Package size (0402) | 0.5 mm ± 0.05 mm |
The NTC5-102 model has a resistance of 1.0 kΩ at 25 °C.
The B‑value for the NTC5-103 thermistor is 3950 K.
The B‑value tolerance is ±3 %.
The 0402 package measures 0.5 mm ± 0.05 mm in length.
