Bosch Security Systems Plena Mixer Amplifier PLE-1MA030-EU/PLE-1MA060-EU/PLE-1MA120-EU Installation and User Manual

This manual introduces the features and characteristics of the Plena Mixer Amplifier.

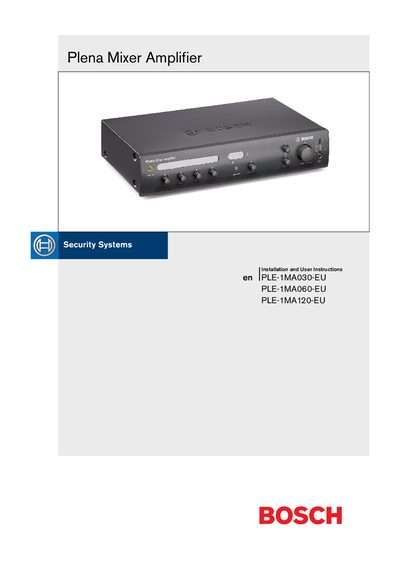

Bosch Security Systems Plena Mixer Amplifier PLE-1MA030-EU/PLE-1MA060-EU/PLE-1MA120-EU Installation and User Manual - cover page
Brand
Plena
Category
Other
Document type
User Manual
Language
English
Pages
30
File format
PDF
File size
2.6 MB
Published
01 June, 2012
Updated
30 September, 2023
MD5 checksum
F8BA9AD76E4BB09B2A73CEBB57FFD4C6
PDF
Bosch Security Systems Plena Mixer Amplifier PLE-1MA030-EU/PLE-1MA060-EU/PLE-1MA120-EU Installation and User Manual PDF

About this manual

This manual provides installation, configuration and operating information for the Plena Mixer Amplifier, a professional public‑address unit that mixes up to four microphone/line signals and three music sources. It is intended for installers and end users of Plena PA systems.

The document covers unpacking, rack mounting, wiring of inputs and outputs, wall‑panel connection, power settings, and detailed technical specifications such as electrical ratings, dimensions and environmental limits.

What's inside

  • Important safeguards
  • Introduction
  • Description
  • Installation
  • Connections and settings
  • Operation
  • Technical data

Specifications

Mains voltage230 VAC, ±10%, 50/60 Hz
Power consumption (VA)PLE-1MA030-EU 100 VA, PLE-1MA060-EU 200 VA, PLE-1MA120-EU 400 VA
Inrush currentPLE-1MA030-EU 4.5 A, PLE-1MA060-EU 5 A, PLE-1MA120-EU 10 A
Maximum / rated powerPLE-1MA120-EU 180 W / 120 W
Dimensions (H × W × D)100 × 430 × 270 mm (19" wide, 2U high)
WeightPLE-1MA030-EU approx. 5 kg, PLE-1MA060-EU approx. 8.5 kg, PLE-1MA120-EU approx. 10.5 kg

Frequently asked questions

How many microphone/line inputs does the unit provide?

The amplifier has four microphone/line inputs.

What is the maximum power rating for the PLE-1MA120-EU model?

The PLE-1MA120-EU is rated for 120 W (maximum 180 W).
