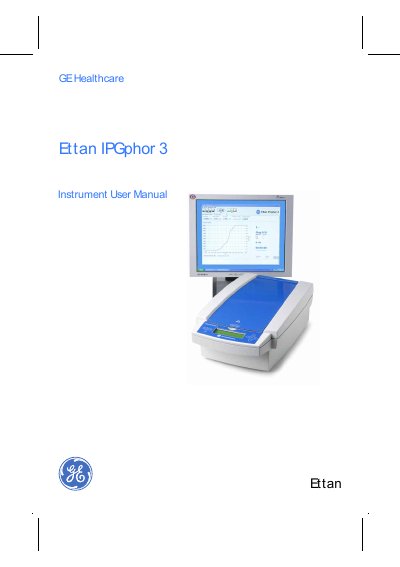

The GE Healthcare Ettan IPGphor 3 is an isoelectric focusing system with features such as high voltage, safe use, and product protection.
This manual describes the Ettan IPGphor 3 isoelectric focusing system, including its components, high‑voltage power supply, temperature control, and software integration. It guides users through unpacking, installation, power connection, serial communication, and protocol programming.
Safety warnings, cleaning procedures, troubleshooting tips, and customer service contacts are also included to ensure reliable and safe operation in a research laboratory environment.
| Maximum high‑voltage output | up to 10 kV |
|---|---|
| Platform temperature range | 15–30 °C ±2 °C |
| Serial port | RS232, 1200 or 9600 baud, 8‑N‑1 |
| Strip holder capacity | up to 12 fixed‑length strip holders |
| Control panel display | LCD, 4 lines, 24 characters per line |
The instrument’s integrated high‑voltage DC power supply can deliver up to 10 kV.
The system can accommodate up to 12 fixed‑length strip holders or one manifold.
The RS232 port must be set to 9600 baud, 8 data bits, 1 stop bit, no parity.
The platform temperature should be set between 15 °C and 30 °C, within ±2 °C.
