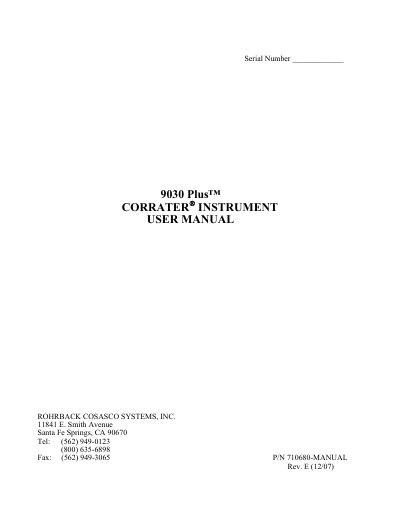

This manual introduces the basic knowledge of the CORRATER® 9030 Plus instrument, including installation, operation, maintenance, etc.
The 9030 Plus CORRATER is a single‑ or two‑channel field‑installed corrosion monitor for cooling, process, or potable water systems. It measures corrosion rate, imbalance (pitting tendency) and temperature automatically, and can log data via CORRDATA® Plus software.
The manual is organized into chapters covering introduction, specifications, installation, operation, maintenance, data‑logger configuration, and an appendix describing the theory of operation and probe configurations.
| Channels | 1 or 2 |
|---|---|
| Probe Compatibility | All two‑electrode CORRATER probes |
| Corrosion Rate Range | 0.01 to 1,000 MPY (autoranging) |
| Imbalance Range | 0.01 to 1,000 pitting units (autoranging) |
| Multiplier Range | 0.50 to 3.00 (step 0.01) |
| Temperature Measurement Range | -40 °C to +260 °C |
| Temperature Accuracy | ±2 °C (excluding sensor) |
| Power Requirements | 115 or 230 V, 15 W nominal |
| Instrument Operating Temperature | 32 °F – 122 °F (0 °C – 50 °C) |
| Enclosure | NEMA 4X |
| Unit Weight | 6 lbs |
The instrument measures temperature from –40 °C to +260 °C.
It provides six isolated 4‑20 mA current loop drivers.
The instrument consumes 15 watts nominally.
The unit is housed in a NEMA 4X weatherproof enclosure.
