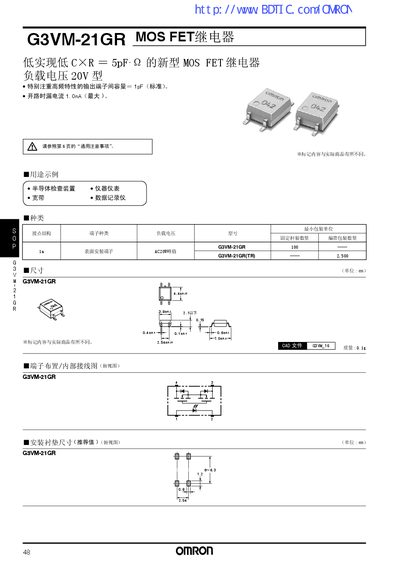

This document describes the features and characteristics of the OS P 48 G3VM-21GR MOS FET relay, including a new type of MOS FET relay with low C×R implementation, high frequency characteristics, leakage current when open, and usage examples.
The document describes the G3VM-21GR MOS FET relay, including its electrical parameters, mechanical dimensions, and recommended operating conditions. It contains tables of typical values, maximum ratings, and application notes.
Key information such as forward voltage, leakage current, terminal capacitance, and temperature limits are listed to help designers integrate the relay safely into circuits. This manual is written in Japanese.
| Rated voltage | 20 V |
|---|---|
| Forward voltage (typical) | 1.0 V |
| Forward current (max) | 50 mA |
| Operating temperature range | -20 °C to 85 °C |
| Terminal capacitance (max) | 15 pF |
The maximum forward current is 50 mA.
It can operate from –20 °C to 85 °C.
