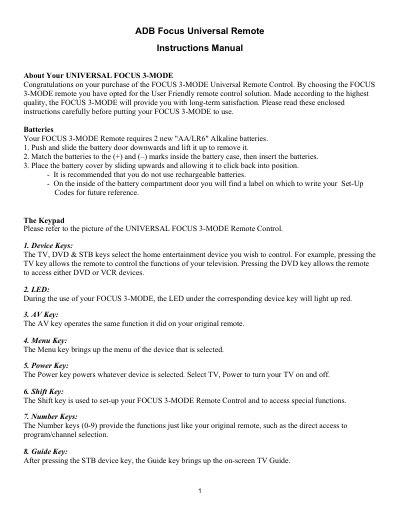

This document is the ADB Focus Universal Remote Instructions Manual
The Focus 3-MODE is a universal remote that controls TVs, DVD players, set‑top boxes and other home‑entertainment devices. It uses two AA/LR6 alkaline batteries and features a red LED indicator under each device key.
The manual covers battery installation, keypad functions, step‑by‑step programming of device codes, macro creation, feature and master resets, volume punch‑through, and a comprehensive troubleshooting guide. A full TV code list is included for quick reference.
| Battery type | 2 AA/LR6 alkaline batteries |
|---|---|
| Macro command capacity | Up to 8 commands per macro |
Turn on the TV, press and hold SHIFT until the red light blinks twice, then enter the four‑digit TV code using the number keys.
For a feature reset press and hold SHIFT until the red light blinks twice, then press 9‑8‑0. For a master reset press and hold SHIFT until the red light blinks twice, then press 9‑7‑7.
Press and hold SHIFT until the red light blinks twice, press 9‑9‑5, select the key to assign, then press the sequence of commands (up to 8) and finish by pressing SHIFT again.
