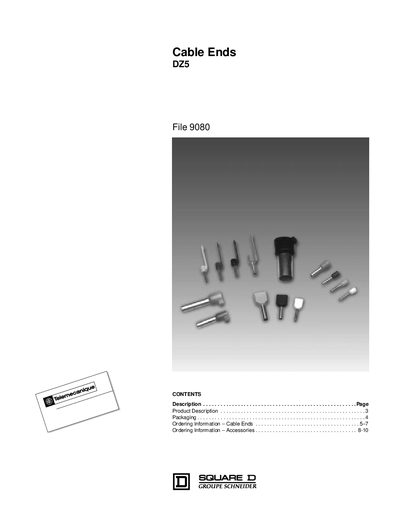

This document is the instruction manual for Insulated Cable Ends DZ5. It introduces the product's features and characteristics.
The DZ5 cable ends are insulated terminations with a tinned copper ferrule and a halogen‑free plastic sleeve. The ferrule secures stranded wire strands while the sleeve protects adjacent connections and can include a marker attachment.
The handbook details three length options (Short 11 mm, Medium 13 mm, Long 16.8 mm), several packaging formats (dispensing packs, strip of 10 tear‑off bags, individual bags) and ordering information, including part numbers, dimensions, and compliance with NFC 63‑023 or DIN 46228 standards.
| Ferrule material | Copper, tin plated to ISO 1337 |
|---|---|
| Sleeve material | Halogen‑free plastic |
| Temperature range | -20 °C to 105 °C (-4 °F to 221 °F) |
| Standards compliance | NFC 63‑023 or DIN 46228 |
They are rated for -20 °C to 105 °C (-4 °F to 221 °F).
They conform to NFC 63‑023 or DIN 46228.
Options include dispensing packs, strips of 10 tear‑off bags, and individual bags.
