Matilec 68352 Multiplug Specifications Manual

This product is a multi-socket with switch, model is 68352, brand is matilec

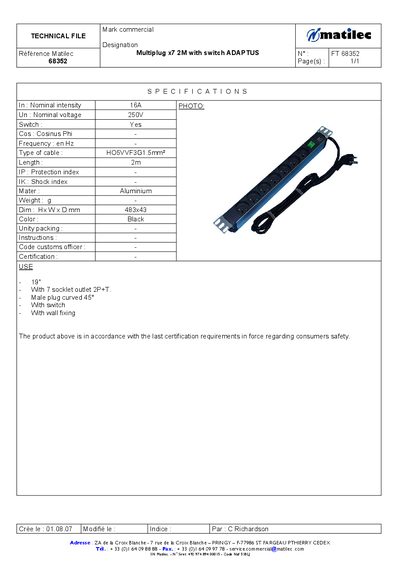

Matilec 68352 Multiplug Specifications Manual - cover page
Brand
MATILEC
Category
Other
Document type
Datasheet
Language
French
Pages
1
File format
PDF
File size
111 KB
Published
12 May, 2012
Updated
30 September, 2023
MD5 checksum
96D3E170D60C9E4B66146CE0248135E7

About this manual

The Matilec 68352 is a 2‑meter long multiplug with seven socket outlets (2P+T), a male plug curved 45°, and an integrated switch. It features an aluminium body, black colour, and complies with the latest consumer safety certifications.

The device is supplied with wall‑fixing hardware and is intended for use with a nominal voltage of 250 V and a nominal current of 16 A. Technical details such as cable type (HOSVVF3G1.5mm?), dimensions (483 × 43 mm) and material are listed in the specifications section. This manual is written in French.

What's inside

  • Technical File
  • Specifications
  • Use

Specifications

Nominal intensity16 A
Nominal voltage250 V
SwitchYes
Cable typeHOSVVF3G1.5mm?
Length2 m
MaterialAluminium
Dimensions (HxWxD)483 × 43 mm
ColorBlack
Number of outlets7
Plug typeMale plug curved 45°
Wall fixingYes

Frequently asked questions

What is the nominal current rating of the Matilec 68352?

It is rated for a nominal intensity of 16 A.

Does the Matilec 68352 include a switch?

Yes, the device has an integrated switch.

How long is the cable on the Matilec 68352?

The cable length is 2 m.
