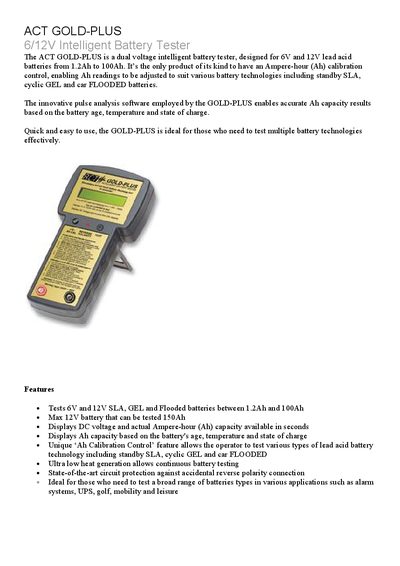

The ACT GOLD-PLUS 6/12V Intelligent Battery Tester is a dual voltage intelligent battery tester, designed for 6V and 12V lead acid batteries from 1.2Ah to 100Ah. It’s the only product of its kind to have an Ampere-hour (Ah) calibration control, enabling Ah readings to be adjusted to suit various battery technologies including standby SLA, cyclic GEL and car FLOODED batteries. The innovative pulse analysis software employed by the GOLD-PLUS enables accurate Ah capacity results based on the battery age, temperature and state of charge. Quick and easy to use, the GOLD-PLUS is ideal for those who need to test multiple battery technologies effectively.
The ACT GOLD-PLUS is a dual‑voltage intelligent battery tester designed for 6 V and 12 V lead‑acid batteries ranging from 1.2 Ah to 100 Ah. It provides Ah capacity results adjusted for battery age, temperature and state of charge, and includes a unique Ah Calibration Control for SLA, GEL and flooded batteries.
The device offers a back‑lit LCD, low heat generation for continuous testing, reverse‑polarity protection with a red LED, and a range of specifications such as ±3 % DC voltage accuracy and ±10 % Ah accuracy. It comes with test leads, a soft carry case, operating instructions and a certificate of conformity.
| Display Type | Back-lit LCD |
|---|---|
| DCV Accuracy | + 3% of displayed reading |
| Ah Accuracy | + 10% |
| Size | 210(H) x 110(W) x 41(D) mm |
| Operating Voltage | 6V and 12V DC |
| Max Input Voltage | >15 VDC |
| Battery Types | SLA, GEL & Flooded |
| Battery Sizes | 6V (1.2Ah — 12Ah) and 12V (1.2Ah to 100Ah) |
| Reverse Polarity Protection | Red LED Indication |
| Applied Pulse Load | 6A 1.2Ah‑7Ah, 18A 8Ah‑100Ah |
It can test both 6 V and 12 V lead‑acid batteries.
It can test up to 150 Ah for a 12 V battery.
A red LED lights up to indicate reverse polarity protection.
