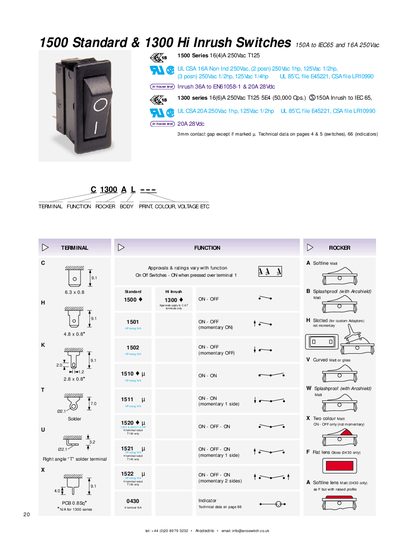

This document is an information manual for the Arcolectric 1300 and 1500 series switches. It covers the features and characteristics of the switches, as well as how to use them.
The Arcolectric handbook provides detailed information on the 1500 Standard and 1300 Hi Inrush switch series, including current ratings, contact gap, voltage options and certification details. It also lists terminal functions, rocker body options, and indicator light configurations.
Additional sections cover dimensions, cut‑out flange sizes, colour and voltage variants, and contact information for ordering and technical support.
| 1500 Series current rating | 16(4) A |
|---|---|
| 1300 Series current rating | 16(6) A |
| Inrush current rating | 36 A |
| Contact gap | 3 mm |
| UL certification | E63363 |
| CSA certification | LR29381 |
| Voltage options | 100/130 V (marked 110 V), 200/250 V (marked 230 V) |
The contact gap is 3 mm unless otherwise marked.
They are certified under UL file E63363 and CSA file LR29381.
Available voltages are 100/130 V (marked 110 V) and 200/250 V (marked 230 V).
The inrush current rating is 36 A according to EN61058‑1.
