0600 Lever Switches Handbook

The document describes Arcolectric's C0600HD and C0600CC Lever Switches, including different options for actuators, bodies, and fixing.

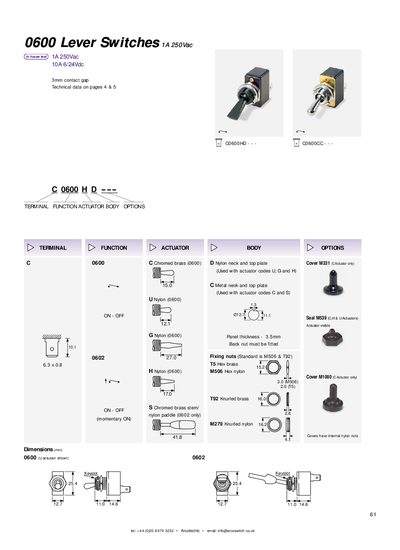

0600 Lever Switches Handbook - cover page
Brand
0600
Category
switch
Document type
Product Leaflet
Language
English
Pages
2
File format
PDF
File size
210 KB
Published
12 May, 2012
Updated
28 September, 2023
MD5 checksum
2BB7E5490E101B4740FABB4E0C6FB04D
PDF
0600 Lever Switches Handbook PDF

About this manual

This handbook provides the technical specifications for the 0600 series lever switches. It lists current ratings, contact gap, panel thickness, and dimensional data, as well as the available actuator and body options.

The document also details the standard fixing nuts, cover types, seals, and optional terminal barriers, giving users the information needed to select the correct hardware for their applications.

What's inside

  • Technical Data
  • Terminal Function
  • Actuator Options
  • Body Options
  • Dimensions
  • Fixing Nuts
  • Covers and Seals
  • Panel Thickness
  • Single Pole / Double Pole

Specifications

Current rating (A) 250Vac4A
Current rating (A) 6/24V10A
Contact gap3 mm
Panel thickness3.5 mm
Dimensions (mm)11.0 × 14.6
Download PDF (210 KB)
