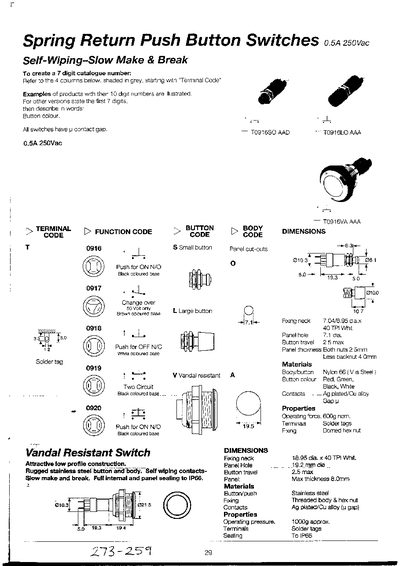

The sheet describes a range of spring‑return push‑button switches with self‑wiping, slow make‑and‑break contacts and vandal‑resistant construction. All units are sealed to IP66, feature a stainless‑steel button and body, and are available in red, green, black or white.
Technical details include a 0.5 A 250 Vac current rating, operating force of about 600 g, operating pressure around 1000 g, and dimensions such as a 19.2 mm panel‑hole diameter and a 2.5 mm maximum button travel. Various terminal codes (e.g., T0916, T0917) identify the wiring options.
| Current rating | 0.5 A 250 Vac |
|---|---|
| Button colours | Red, Green, Black, White |
| Operating force | 600 g nominal |
| Operating pressure | ≈1000 g |
| Button travel | 2.5 mm max |
| Panel hole diameter | 19.2 mm |
| Fixing neck diameter | 18.95 mm |
The switch is rated for 0.5 A at 250 Vac.
Buttons are offered in red, green, black, and white.
The button travel is up to 2.5 mm.
