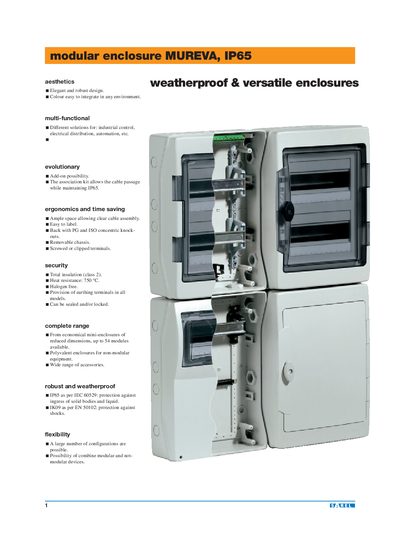

The document describes a weatherproof and versatile enclosure product. The features include an elegant and robust design, a color that can easily integrate into any environment, add-on possibilities, ergonomic and time-saving design, ample space for cable assembly, easy labeling, removable chassis, and modular or clipped terminals. It is a multi-functional enclosure suitable for industrial control, electrical distribution, automation, etc. It provides total insulation, high heat resistance, and is halogen-free. The range includes mini-enclosures, polyvalent enclosures, and a wide range of accessories. It is robust, weatherproof, and flexible, with various configurations and the ability to combine modular and non-modular devices.
The MUREVA series offers weatherproof modular enclosures for industrial control, electrical distribution, automation and other applications. Available in a range from compact mini‑enclosures to large 54‑module units, the system provides flexible configurations, optional coupling kits, and a variety of accessories.
Key features include self‑extinguishing insulating material, total Class 2 insulation, IP65 protection, and resistance to chemicals and harsh environments. Technical data such as operating temperature, colour, and construction details are provided, along with mounting options and accessory part numbers.
| Operating temperature | ‑25 °C to +60 °C |
|---|---|
| Colour | Light grey RAL 7035, semi‑transparent door |
| Heat resistance | 750 °C |
| IP rating | IP65 (IP6S as per IEC 60529) |
| Shock protection | IKO9 as per EN 50102 |
| Insulation class | Class 2 (total insulation) |
| Material | Self‑extinguishing insulating material |
| Chemical resistance | Resistant to chemicals and atmospheric agents |
| Fasteners | Stainless steel screws |
The enclosure operates from –25 °C up to +60 °C.
It complies with IP65, referenced as IP6S in IEC 60529.
The enclosure uses self‑extinguishing insulating material with flame resistance up to 750 °C.
Yes, it meets the IKO9 shock protection standard (EN 50102).
